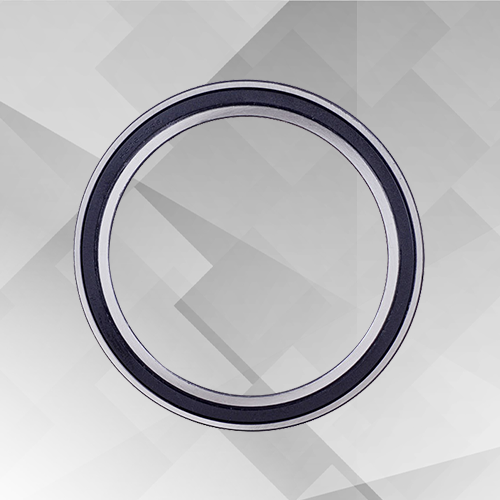

英制等截面薄壁角接觸球軸承

A型角接觸球軸承與C型軸承不同之處在于A型軸承有足夠的徑向游隙，能形成足夠的接觸角來承受軸向載荷。由于具有單向載荷能力，該軸承需要與其它軸承對稱配對安裝，以設定并保證接觸角，同時在受到交變的軸向載荷時使其軸向運動最小。


HAAA系列

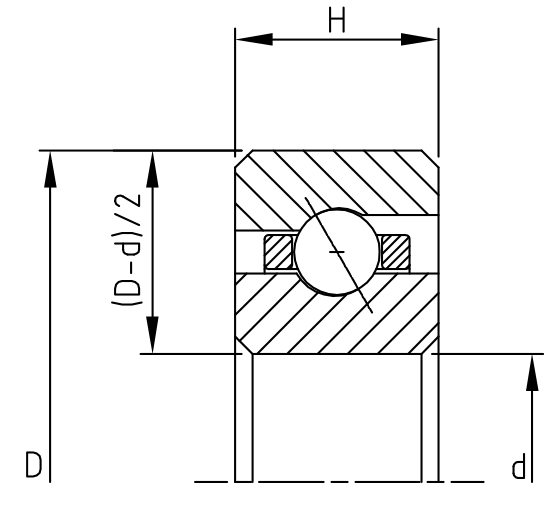

軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAAA1025.434.9254.7631.510.864.312.00
HAAA1538.147.6254.7632.141.066.142.49
HAAA1744.4553.9754.7632.361.126.762.67




HAA系列
軸承型號 主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAA2050.863.56.353.511.8010.144.27
HAA2563.576.26.354.272.0412.374.89
HAA3076.288.96.355.072.2614.635.47
HAA3588.9101.66.355.832.4616.866.01
HAA40101.6114.36.356.632.6519.136.54
HAA42107.95120.656.357.032.7420.246.81
HAA45114.31276.357.382.8321.407.03
HAA47120.65133.356.357.782.9222.517.30
HAA50127139.76.358.183.0123.627.52
HAA55139.7152.46.358.993.1825.898.01
HAA60152.4165.16.359.743.3528.118.45
HAA65165.1177.86.3510.543.5130.388.90
HAA70177.8190.56.3511.303.6632.659.34
HAA75190.5203.26.3512.103.8134.879.74
HAA80203.2215.96.3512.863.9637.1410.14
HAA90228.6241.36.3514.414.2441.6410.99
HAA100254266.76.35159.704.7746.1311.74
HAA110279.4292.16.35175.265.0250.6212.50




HAB系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAB2050.866.6757.9384.852.6714.016.14
HAB2563.579.3757.9385.963.0017.177.07
HAB3076.292.0757.9386.893.2619.887.78
HAB3588.9104.7757.9387.963.5623.048.59
HAB40101.6117.4757.9389.073.8526.209.34
HAB42107.95123.8257.9389.563.9627.589.65
HAB45114.3130.1757.93810.014.0828.919.96
HAB47120.65136.5257.93810.634.2330.7410.41
HAB50127142.8757.93811.124.3432.0710.72
HAB55139.7155.5757.93812.194.6035.2311.39
HAB60152.4168.2757.93813.304.8438.3912.05
HAB65165.1180.9757.93814.235.0441.1012.63
HAB70177.8193.6757.93815.355.2744.3013.26
HAB75190.5206.3757.93816.465.4947.4613.88
HAB80203.2219.0757.93817.535.7150.6214.50
HAB90228.6244.4757.93819.576.0956.4915.61
HAB100254269.8757.93821.756.5062.8116.73
HAB110279.4295.2757.93823.806.8568.6817.79
HAB120304.8320.6757.93825.987.2275.0018.86
HAB140355.6371.4757.93830.077.8686.7420.77
HAB160406.4422.2757.93834.308.4898.9722.69
HAB180457.2473.0757.93838.529.07111.1624.51
HAB200508523.8757.93842.759.62123.3526.24




HAC系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAC40101.6120.659.52511.345.1332.7412.32
HAC42107.951279.52512.055.3134.7912.81
HAC45114.3133.359.52512.725.4936.7913.30
HAC47120.65139.79.52513.435.6738.7913.79
HAC50127146.059.52514.155.8440.7914.23
HAC55139.7158.759.52515.306.1144.1314.99
HAC60152.4171.459.52516.686.4448.1315.92
HAC65165.1184.159.52518.066.7652.1316.77
HAC70177.8196.859.52519.227.0155.4717.48
HAC75190.5209.559.52520.607.3059.5218.33
HAC80203.2222.259.52522.027.6063.5219.13
HAC90228.6247.659.52524.558.1070.8620.60
HAC100254273.059.52527.318.6478.8722.11
HAC110279.4298.459.52529.899.1186.2523.49
HAC120304.8323.859.52532.439.5593.5924.78
HAC140355.6374.659.52537.7710.44108.9827.45
HAC160406.4425.459.52543.0611.27124.3329.94
HAC180457.2476.259.52548.4012.04139.7232.38
HAC200508527.059.52553.5112.74154.4434.61
HAC250635654.059.52566.2814.38192.5240.08
HAC300762781.059.52579.8915.84230.6445.19




HAD系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAD40101.612712.715.798.0945.6418.95
HAD42107.95133.3512.716.688.3448.1719.66
HAD45114.3139.712.717.578.5950.7120.33
HAD47120.65146.0512.718.468.8353.2521.00
HAD50127152.412.719.319.0755.7821.66
HAD55139.7165.112.721.089.5460.8522.95
HAD60152.4177.812.722.8210.0065.9224.20
HAD65165.1190.512.724.6010.4470.9925.44
HAD70177.8203.212.726.3310.8676.0626.64
HAD75190.5215.912.728.1111.2881.1427.80
HAD80203.2228.612.729.8511.6986.2128.96
HAD90228.625412.733.3612.4796.3531.18
HAD100254279.412.736.8813.22106.4933.36
HAD110279.4304.812.740.3913.94116.6335.41
HAD120304.8330.212.743.9014.63126.7737.45
HAD140355.638112.750.9315.93147.0641.32
HAD160406.4431.812.757.9617.15167.3445.06
HAD180457.2482.612.764.9918.30187.6348.62
HAD200508533.412.772.0219.38207.9152.09
HAD210533.4558.812.775.5419.89218.0553.76
HAD250635660.412.789.5921.83258.6260.23
HAD300762787.412.7107.1624.01309.3367.88




HAF系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAF40101.6139.719.0528.2516.6281.5837.45
HAF42107.95146.0519.0529.3616.9384.7438.39
HAF45114.3152.419.0531.5417.6491.0140.26
HAF47120.65158.7519.0532.6117.9494.1241.19
HAF50127165.119.0533.6718.2497.2842.08
HAF55139.7177.819.0536.9619.21106.6744.75
HAF60152.4190.519.0540.2120.15116.1047.37
HAF65165.1203.219.0543.4621.06125.5349.91
HAF70177.8215.919.0546.7521.94134.9152.36
HAF75190.5228.619.0548.9322.47141.1953.96
HAF80203.2241.319.0552.1823.32150.6256.36
HAF90228.6266.719.0558.6724.95169.4360.94
HAF100254292.119.0564.1426.20185.1364.63
HAF110279.4317.519.0570.6427.70203.9568.95
HAF120304.8342.919.0576.0628.86219.6572.46
HAF140355.6393.719.0588.0331.33254.1779.85
HAF160406.4444.519.05100.0033.64288.6586.92
HAF180457.2495.319.05113.0336.04326.3294.35
HAF200508546.119.05125.0038.09360.84100.89
HAF250635673.119.05154.3542.64445.71116.10
HAF300762800.119.05184.7846.85533.34130.91
HAF350889927.119.05215.2050.63621.42144.92
HAF40010161054.119.05245.6354.03709.05158.27




HAG系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAG40101.6152.425.442.1727.94121.7060.63
HAG42107.95158.7525.444.2628.64127.8062.68
HAG45114.3165.125.446.3929.19133.8964.63
HAG47120.65171.4525.448.4930.00139.9466.59
HAG50127177.825.450.5830.68146.0468.50
HAG55139.7190.525.454.8031.99158.2272.24
HAG60152.4203.225.459.0333.27170.3775.89
HAG65165.1215.925.463.2534.52182.5679.49
HAG70177.8228.625.467.4435.74194.7482.96
HAG75190.5241.325.471.6636.93206.8986.38
HAG80203.225425.475.8938.10219.0789.77
HAG90228.6279.425.484.3440.36243.4196.26
HAG100254304.825.492.7542.53267.74102.58
HAG110279.4330.225.4101.2044.60292.07108.71
HAG120304.8355.625.4109.6046.62316.45114.68
HAG140355.6406.425.4126.4650.43365.11126.15
HAG160406.4457.225.4143.3254.01413.77137.14
HAG180457.250825.4160.2257.37462.62147.68
HAG200508558.825.4177.0860.55511.10157.87
HAG220558.8609.625.4193.9363.57559.84167.75
HAG250635685.825.4219.2167.79632.98182.02
HAG300762812.825.4261.3874.23754.42204.71
HAG350889939.825.4303.5579.99876.30226.15
HAG40010161066.825.4345.7285.20998.18246.61




  • 相關產品

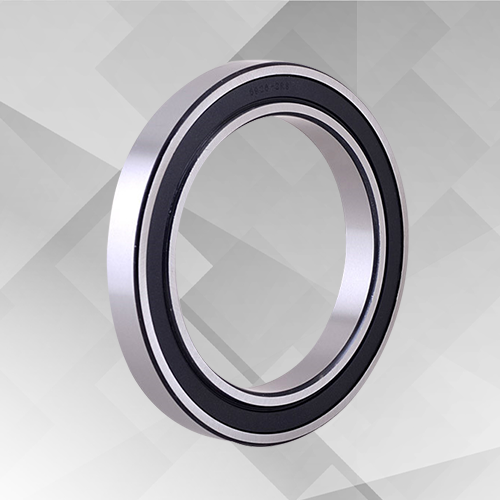

英制等截面薄壁角接觸球軸承
